Performance Characteristics
- CPU: MTK platform 2.0GHz Octa Core
- OS: Android 14
- Memory: 2GB LPDDR4X RAM / 64GB eMMC ROM
- Interface: USB C connector / USB 2.0 and power charging / Support Serial Port / 12V input / Ignition / eeprom
Communication options
- WWAN: 2G: 850,900,1800,1900 | 3G: B1,B2,B4,B5,B8 | 4G: B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B28,B40,B38,B41
- WLAN: Wi-Fi 802.11 b/n/ac | 802.11 d/e/h/i/j/k/r/v/w | IPv4, IPv6
- WPAN: Bluetooth V5.0
- Voice Support: Yes (Dialer)
Data Capture / Transfer
- Camera: 20 Megapixel autofocus and flashlight
- Analog Video Input: Default 1x analog camera video input
- RFID: Front Integrated NFC / HF RFID ISO 15693 MiFare
Display

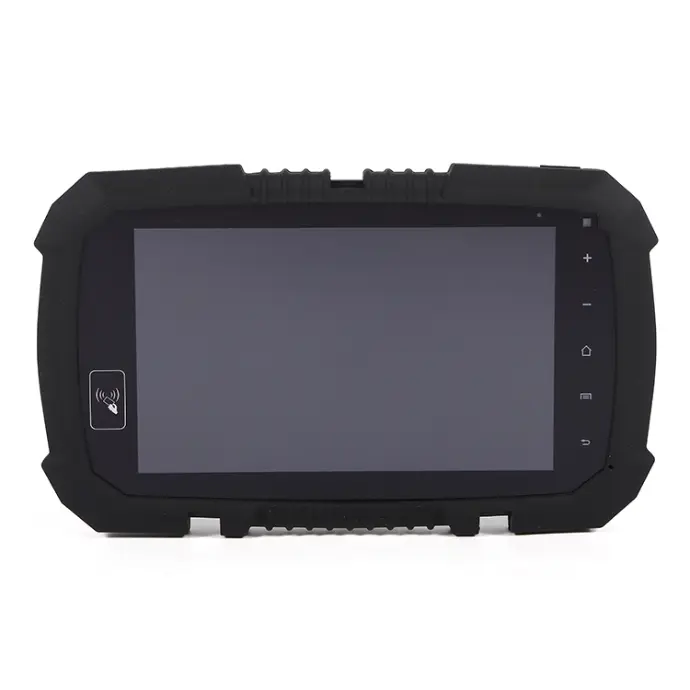

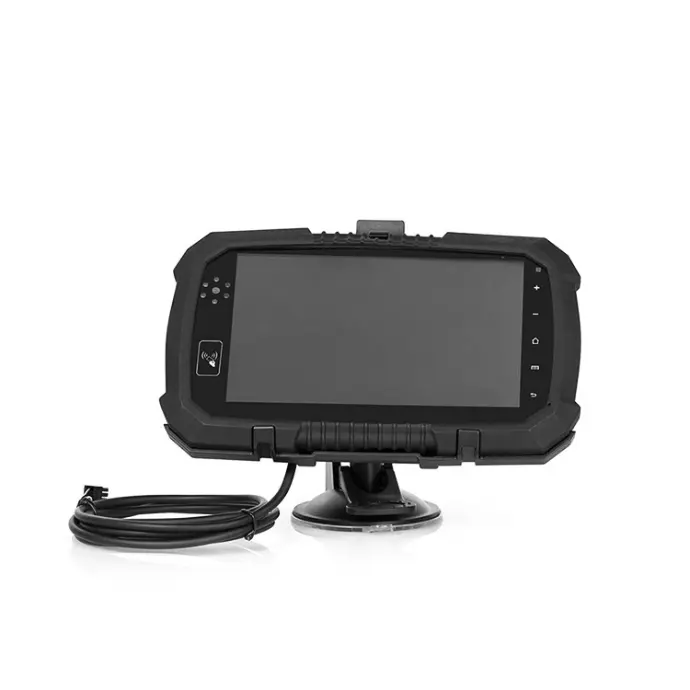

- Touch: 7 inches IPS Panel (1024×600 capacitive touch panel) Glove/Wet/Stylus Touch, Anti-Glare Display
Physical Characteristics
- Dimensions (WxHxD): 220 mm x 130 mm x 21 mm
- Buttons: Power button, touch screen buttons
- Color: Black
- Battery: 4300mAh Li-Polymer Battery
- Expansion slot: Micro SD card up to 128GB
- SIM/SAM Slot: 1 SIM Slot
- Antenna: Internal
- GPS: GNASS, GLONASS, GALILEO, A-GPS
- Sensors: Light sensor, Gyroscope, Accelerometer, E-Compass
Environmental Characteristics
- IP-rating: IP-54
- Operating temperature: -20°C to 60°C
- Storage temperature: -20°C to 70°C
- Humidity: 85%RH @ 60°C to -10°C
Standard and Optional Accessories

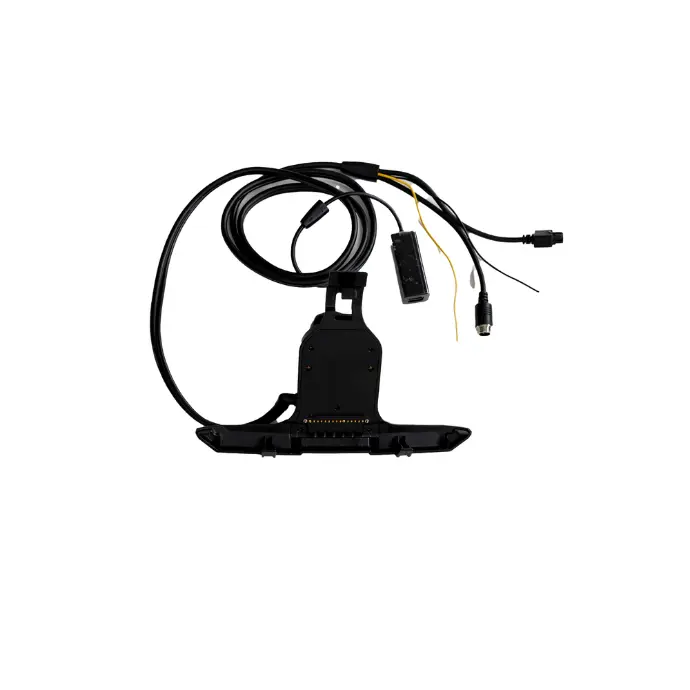

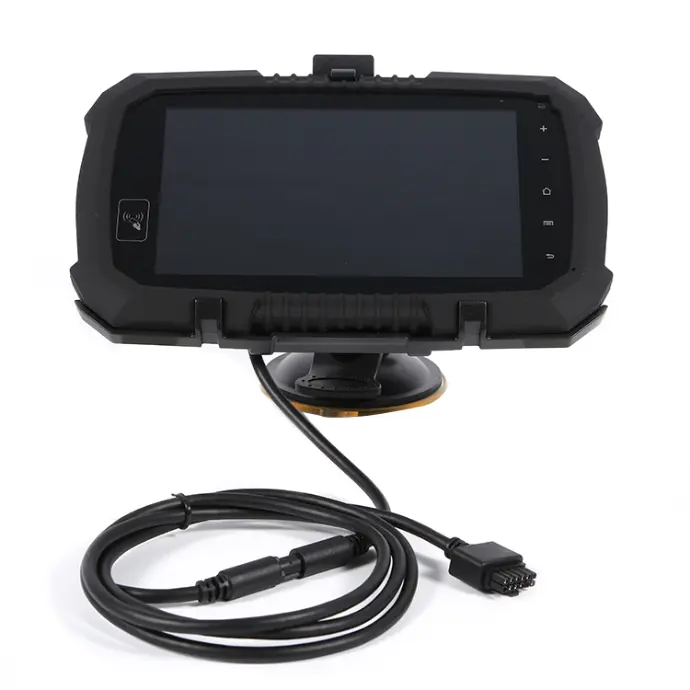

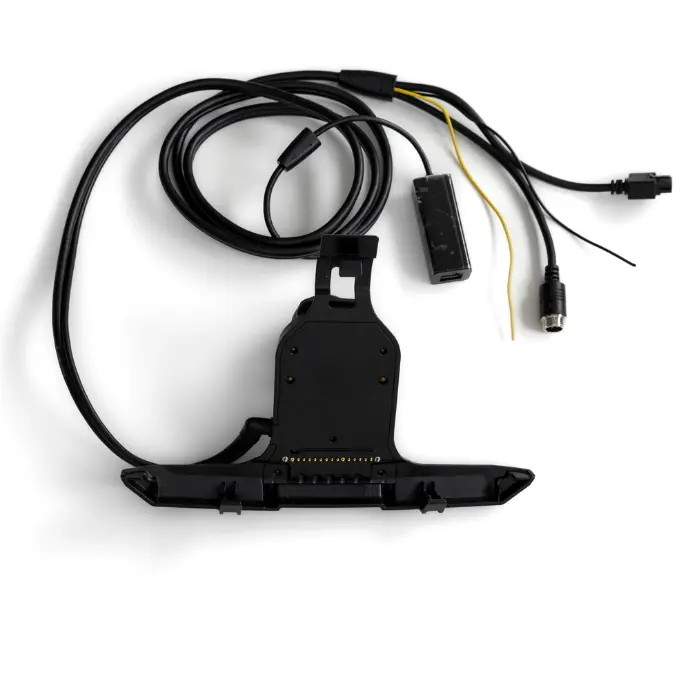

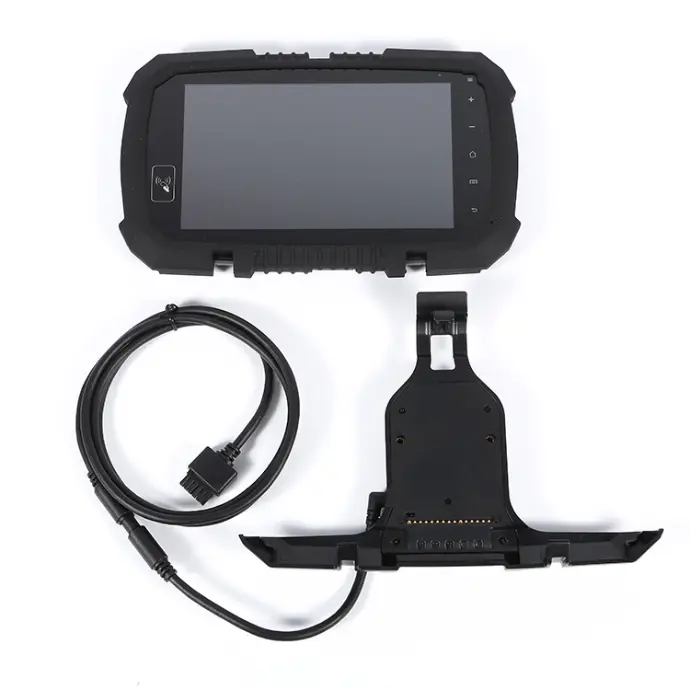

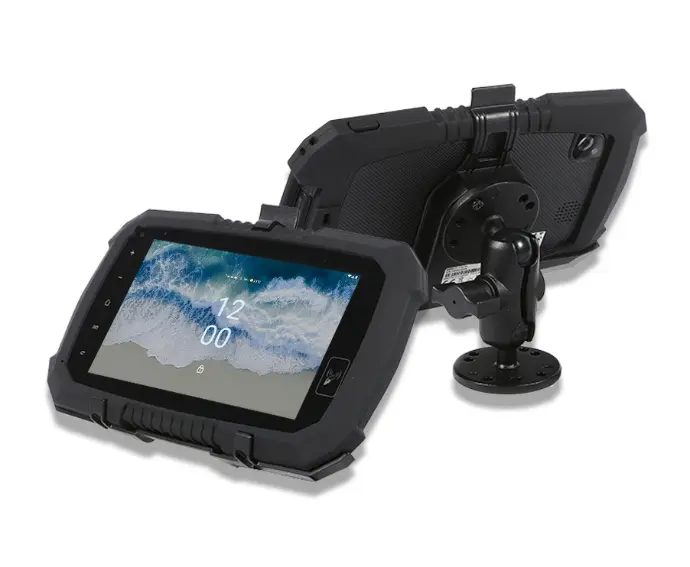

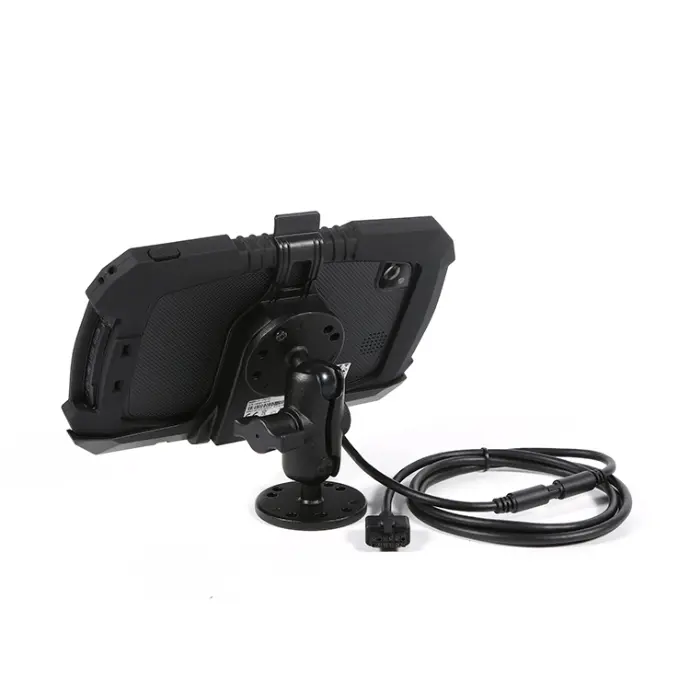

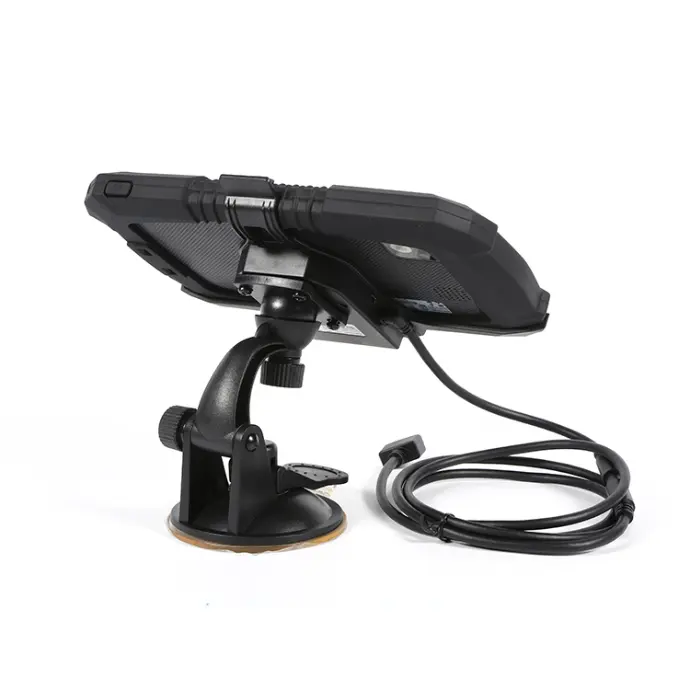

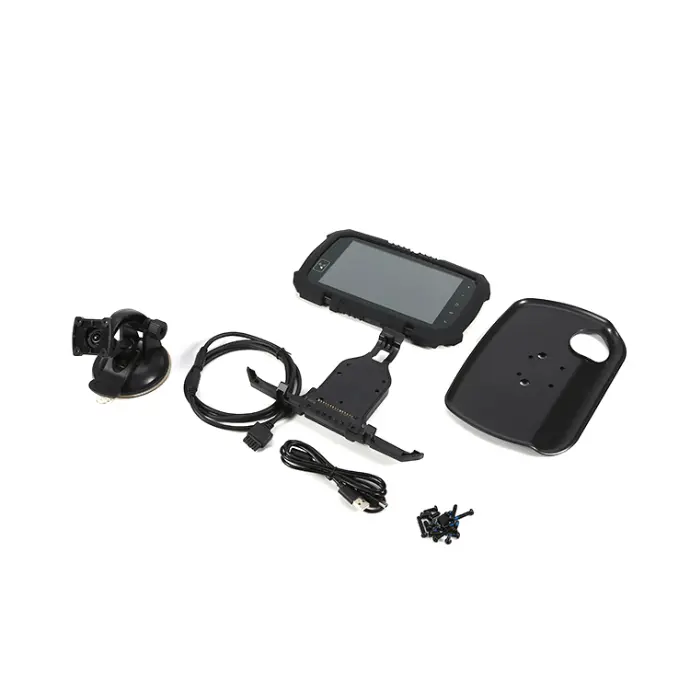

- Standard Accessories (included in the box): Vehicle docking cradle, Metal Screwn Mount (or suction mount), Mounting Screws, RFID testing card, Rubber protective boot, USB Cable.
- Optional Accessories: Analog Camera, Camera Hub Kit, Wall Mount Cradle, External RFID Antenna, LORA Module, CAN BUS, Cigarette Lighter Adapter, Screen Protector.
