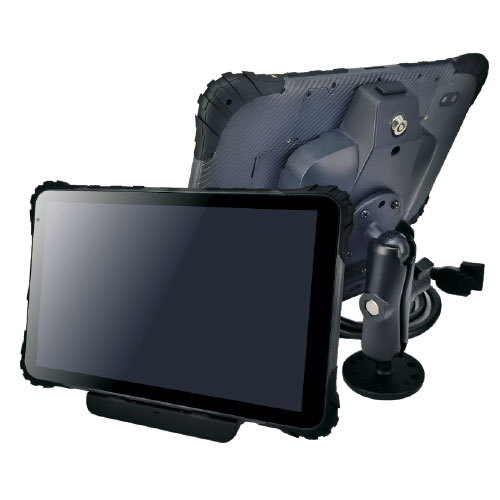

PaceBlade LDT-101



10” Rugged Tablet / In-Vehicle Terminal – Key Highlights:

  • Android 11 (with or without GMS)
  • Desktop/Vehicle cradle kit
  • UN ECE R10.06 certified
  • Many interfaces on cradle such as RJ45, several USB ports, RS-232 etc. / MDM
  • Performance: 2.0 GHz Octa Core CPU
  • Data capture: 16MP Camera, NFC, Barcode Scanner
  • Connectivity: 4G LTE / Bluetooth / WLAN
  • Ruggedness: IP67 / 1.2m droptest







Description

Performance Characteristics:

  • CPU: 2.0 GHz Octa Core Processor
  • OS: Android 11 with GMS or without GMS (optional)
  • Memory: 4GB LPDDR4X / 32GB eMMC
  • Interface: Docking connector (18 pin) / 1x USB Type C 2.0 OTG / 1x 3.5mm Audio Headphone Jack / 2x USB Type A 2.0 OTG on Cradle / 1x RJ45 Ethernet Connector on Cradle / 1x USB Type C on Cradle for power supply

Communication options:

  • WWAN: GSM 850/900/1800/1900MHz / WCDMA: V1/B2/B4/B5/B8 / LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 / LTD TDD: B38/B40/B41
  • WLAN: Wi-Fi IEEE 802.11 a/b/g/n/ac; 802.11 d/e/h/i/j/k/r/v/w / WFA WPA/WPA2 Personal/AES-CCMP/WPI-SMS4/GCMP/WPS2.0/WAPI
  • WPAN: Bluetooth V2.1 + EDR, V3.0 + HS, V4.1 + HS
  • Voice Support: Speaker, Microphone, Headphone

Data Capture / Transfer:

  • Barcode Scanner: 1D/2D BarcodeImager
  • Camera: 16.0 Megapixel autofocus and flashlight / Front cam 8.0 Megapixel
  • Analog Video Input: Support 1 channel AHD 720P, 1080P and analog camera (w/Cradle) / Support 4 channels (optional)
  • RFID: Integrated NFC reader supports: MiFare Classic 1k/4k/plus / MiFare UltraLight / MiFare UltraLight C / MiFare DESFire / MiFare DESFire Ev1 / ISO 14443 A & B / ISO 15693
  • Serial Communication: 2x RS-232

Display:

  • Touch: 10 inch IPS Panel (1920 x 1200 pixel)

Physical Characteristics:

  • Dimensions (WxHxD): 260 mm x 174 mm x 17 mm
  • Weight: 930g
  • Buttons: On Screen Keypad
  • Color: Black with LED Backlight
  • Battery: 7600mAh Li-Polymer Battery
  • Expansion slot: Micro SD card up to 512GB
  • SIM/SAM Slot: 2x Nano-SIM
  • GPS: GPS, GLONASS, GALILEO
  • Sensors: Ambient Light, Accelerometer, E-Compass, Gyroscope

Environmental Characteristics:

  • IP-rating: IP-67
  • Drop spec: 1.2m per MIL-STD-810G
  • Operating temperature: -10°C to 60°C
  • Storage temperature: -20°C to 70°C
  • Humidity: 90% non-condensing

Standard and Optional Accessories:

  • Optional Accessories : Vehicle docking station, RAM Metal Dash Mount, NFC Reader at docking staion, Extra input and output docking station
