PaceBlade MDT-860



8” Rugged Tablet / In-Vehicle Terminal – Key Highlights:

  • Android 9
  • Incl. Vehicle cradle kit
  • UN ECE R10.06 certified
  • Dialer / RJ45 / Canbus / M12 / Front NFC reader / Fixed Audio in-out / MDM
  • Performance: 2.0 GHz Octa Core CPU
  • Data capture: 16MP Camera, NFC
  • Connectivity: 4G LTE / Bluetooth / WLAN
  • Ruggedness: IP67 / 1.2m droptest



The PaceBlade MDT860 is the ideal solution for applications in Transport & Logistics. This MDT860 Tablet features over multiple certifications which are required in the public transporation sector such as an E-Mark R10.06 certification and an R118 certification for the wiring of the cradle.

A huge added value is that the PaceBlade MDT860 is standard delivered with everything you need: A rugged vehicle cradle which can be locked, a RAM Mount for fixation inside the vehicle, and is also available with several optional accessories such as an RJ-45 ethernet connector and comprehensive premium service contracts to extend the warranty into a special contract which covers all accidental damage caused by the user to the device. The rugged vehicle cradle has a long wiring cable which can easily be sealed behind the dashboard. This means that all additional converters such as the Ethernet and Video Trigger Input are incorporated in a wiring harness.

In general: The PaceBlade MDT-860 makes your transport and logistics processes more effective, more efficient and furthermore safer.





Description

Performance Characteristics:

  • CPU: MTK platform 2.0GHz Octa Core
  • OS: Android 9
  • Memory: 2GB DDR3 RAM / 32GB NAND Flash Rom
  • Interface: RJ-45 Ethernet connector (optional), Audio in/out connector (optional), USB C connector, USB 2.0 port, power charging, video trigger input (Yellow-Black wires & 15-pin pogo connector

Communication options:

  • WWAN: GSM 900/1800Mhz 4G: B1, B3, B5, B7, B8, B20
  • WLAN: Wi-Fi IEEE 802.11 b/g/n
  • WPAN: Bluetooth V2.1 + EDR, V3.0 + HS, V4.1 + HS
  • Voice Support: Yes (Dialer)

Data Capture / Transfer:

  • Camera: 16.0 Megapixel autofocus and flashlight
  • Analog Video Input: Default 1x analog camera video input
  • RFID: Front Integrated NFC / HF RFID reader (optional: External RFID reader)

Display:

  • Touch: 8” Color TFT Touch Screen (1280×800 capacitive touch panel)

Physical Characteristics:

  • Dimensions (WxHxD): 230 mm x 169 mm x 33 mm
  • Buttons: Power button, 5 programmable buttons
  • Color: Black
  • Battery: 6300mAh Li-Polymer Battery
  • Expansion slot: Micro SD card up to 128GB
  • SIM/SAM Slot: 1 SIM Slot
  • Antenna: Internal
  • GPS: High sensitivity receiver, 64 channels | GNSS, Glonass, Galileo
  • Sensors: G-sensor, Light sensor, Gyroscope

Environmental Characteristics:

  • IP-rating: IP-67
  • Operating temperature: -10°C to 60°C
  • Storage temperature: -20°C to 70°C
  • Humidity: 85% RH @ 60°C to -10°C

Standard and Optional Accessories:

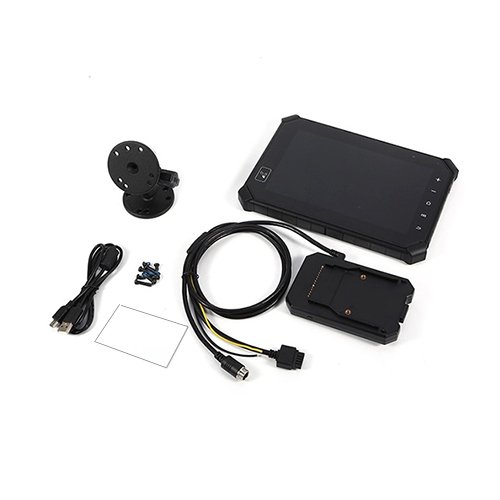

  • Standard Accessories (included in the box): Vehicle docking cradle, RAM Mount, Mounting Screws, RFID testing card
  • Optional Accessories: Vehicle Cradle with RJ-45 connector, Vehicle Cradle with external NFC reader, Fixed audio in/out cable, VCC filter box and more
